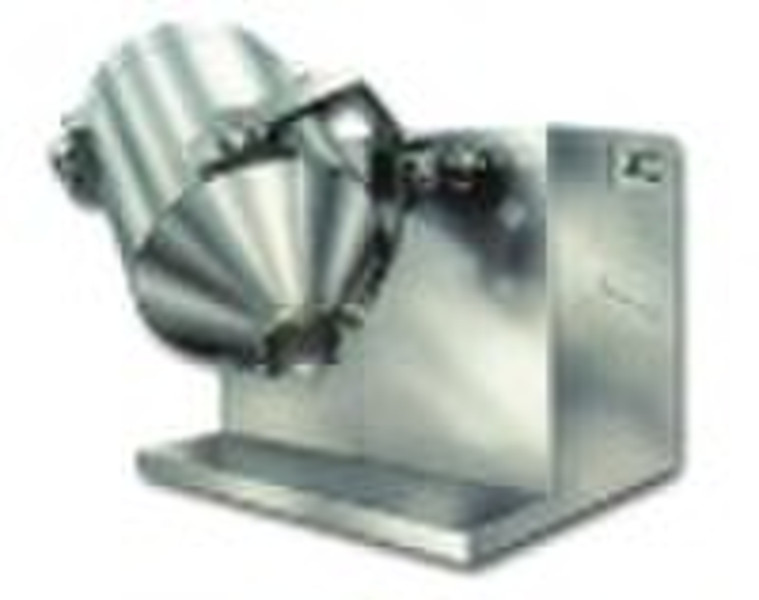

3-D type mixer / blender

Product Name: THREE DIMENSION MOTIONAL MIXER / BLENDERModel No.: HS-5/10/15/20/25/50/100/200/400/600/800/1000/1200/1500Products Description: The HS serial three dimension motional mixer / blender is composed of a machine base, transmission system, multi-directional movement mechanism and a stainless steel mixing cylinder. The mixing barrel is supported by the driving and driven shafts, which are crossed in space and also vertical to each other and are respectively connected by Y-type universal joints, so that the mixing barrel makes unique translation, turning, rocking and rolling motions in a solid 3-dimensional space, thereby speeds up the flow and diffusion of the materials being mixed, while avoids the specific gravity segregation of materials due to the action of centrifugal force in an ordinary mixer, and ensures the materials to reach an ideal mixing within a short time. Features: 1 It has a unique driven shaft servomechanism, so that the whole machine makes smooth and reliable operation with less vibration and low noise. The equipment does not need a foundation and features convenient erection and maintenance as well as long service life. 2 It can ensure a good mixing effect and the mixing time is short. The evenness of mixing reaches above 99.5%. 3 Its charge coefficient reaches 85%, more than double that of an ordinary rotary mixer. 4 Thanks to its sow height and small rotating space, it usually does not need skip floor. 5 The eccentric a cone design of the discharge end of the nixing barrel ensures discharge free of dead corner and residue, so it is easy to clean and conforms to the requirement of GMP. 6 The control system is equipment with the photo-electricity sensor to control the position, time relay, import transducer and motor with brake. It has the function which is mixing time and controlling the charge-out position, and when the machine stop, the mouth of charge-out will be the best position Main Technical Parameter: ModelHS - 5HS - 10HS - 15HS - 20HS - 50HS - 100HS - 200HS - 400HS - 600HS - 800HS - 1000HS - 1200HS - 1500Cylinder Volume (L)510152050100200400600800100012001500Max Loading Capacity (L)48121640801603204806408009601200Max Loading Weight (kg)2.557.5102550100200300400500600750Rotating speed (RPM)≥ 20≥ 20≥ 20≥ 20≥ 17≥ 14≥ 14≥ 12≥ 12≥ 12≥ 12 ≥ 12≥ 12Main Power (KW)0.550.550.550.751.11.52.245.57.57.51111Overall dimension L*W*H720*650*950850*700*1050900*750*11001000*800*10501400*1000*12001700*1200*15001800*1400*15502100*1800*18602400*2200*21002600*2380*23002650*2500*24602950*2650*30003100*2850*3500Weight (kg)150180200250300500800120015002000250030003500
